Model

DP-35

Bandwidth(-3dB)

10X：DC-25MHz

100X：DC-35MHz

Attenuation Ratio

10X,100X

Rise time

10X：14ns

100X：10ns

Accuracy

±2% (After 20 minutes of heat up)

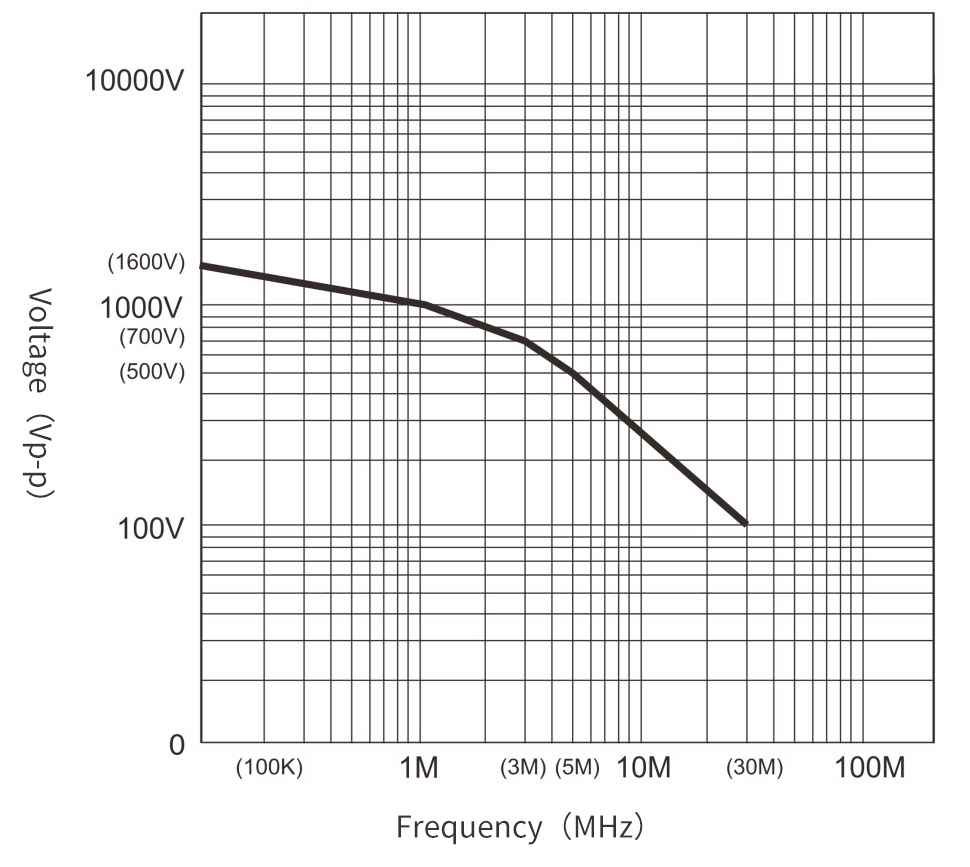

Input voltage range

10X：160V

100X：1600V

Input DC voltage

10X：80V

100X：800V

Common mode voltage（RMS）

280V

Noise

≤1.0mV rms

Input Impedance

Between inputs:9MΩ//1.7pF

Each input to ground:4.5 MΩ//3.4pF

Working Temperature

0~50℃

Working Humidity

10~85%RH

Weight

250g

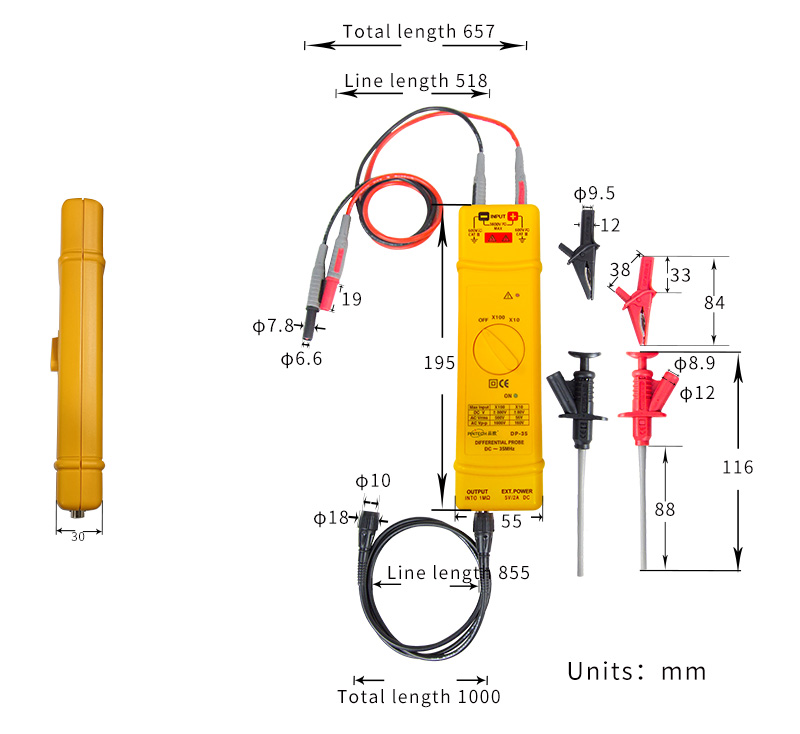

Size

195*55*30 mm
